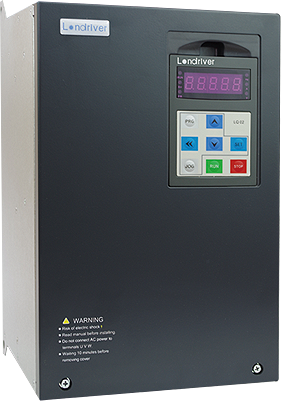

LD8000 Hydraulic Servo Driver
The energy saving effect of ld8000 spindle servo driver is very ideal. The injection molding machine of the hydraulic servo system has double closed loops of system pressure and flow. The hydraulic system supplies oil according to the actual flow and pressure, which overcomes the high energy consumption caused by the high-pressure overflow of the common quantitative pump system. Moreover, the response speed of the system is fast, and the pressure rise time and flow rise time are as fast as 30ms, which improves the hydraulic system's performance. The response speed reduces the action conversion time, speeds up the running time of the whole machine, and greatly improves the production efficiency. It is also worth mentioning that the noise of injection molding machine is reduced from 80dB to 65dB, which improves the field environment of operating machine.
Product Features
1. Control mode: closed loop vector control technology.
2. Weak magnetic technology: excellent weak magnetic control level to improve product performance.
3. Reactor: optional DC reactor can be built in to improve power factor.
4. Module configuration: the fourth generation IGBT has high junction temperature and long service life.
5. Communication: can communication, convenient for online.
6. Braking unit: Standard braking unit of 75kW or less, plus braking resistance.
7. Encoder: differential encoder, resolver.
8. Terminal: pluggable terminal, convenient for user wiring.
2. Weak magnetic technology: excellent weak magnetic control level to improve product performance.
3. Reactor: optional DC reactor can be built in to improve power factor.
4. Module configuration: the fourth generation IGBT has high junction temperature and long service life.
5. Communication: can communication, convenient for online.
6. Braking unit: Standard braking unit of 75kW or less, plus braking resistance.
7. Encoder: differential encoder, resolver.
8. Terminal: pluggable terminal, convenient for user wiring.
Technical Specifications
电气规格 | |
输入电压 | 三相380V~460V;波动不超过±10%,失衡率<3% |
输入频率 | 50/60Hz±5% |
输出电压 | 0~输入电压 |
输出频率 | 0~1000 Hz |
性能规格 | |
控制方式 | 闭环矢量控制 |
过载能力 | 150%额定输出电流2分钟。200%额定输出电流3秒 |
速度分辨率 | 数字设定:0.01 Hz,模拟设定:0.1%×最大频率 |
调速精度 | 速度控制范围:1:1000 |
输入输出 | |
模拟量输入 | 三路输入:压力给定,流量给定,压力反馈 |
数字电源 | +24V,负载能力200mA |
数字输入 | X1-X5,光耦隔离输入;X5可选为高速脉冲输入,支持NPN/PNP可选 |
数字输出 | 两路继电器输出,1路DO1,1路高速FM输出 |
继电器输出 | 2组继电器输出 |
环境特性 | |
工作温度 | -10~+40℃无降额;40~50℃每超过1℃输出电流降额2% |
存贮温度 | -40~+70℃ |
使用环境 | 室内,不受阳光直晒,无尘埃、腐蚀性和可燃性气体、油污、水蒸汽、滴水、盐粉等 |
海拔高度 | 1000米以下无降额;1000~4000米需降额使用 |
温度 | 小于90%RH,无水珠凝露 |
防护等级 | IP21强制风冷 |
